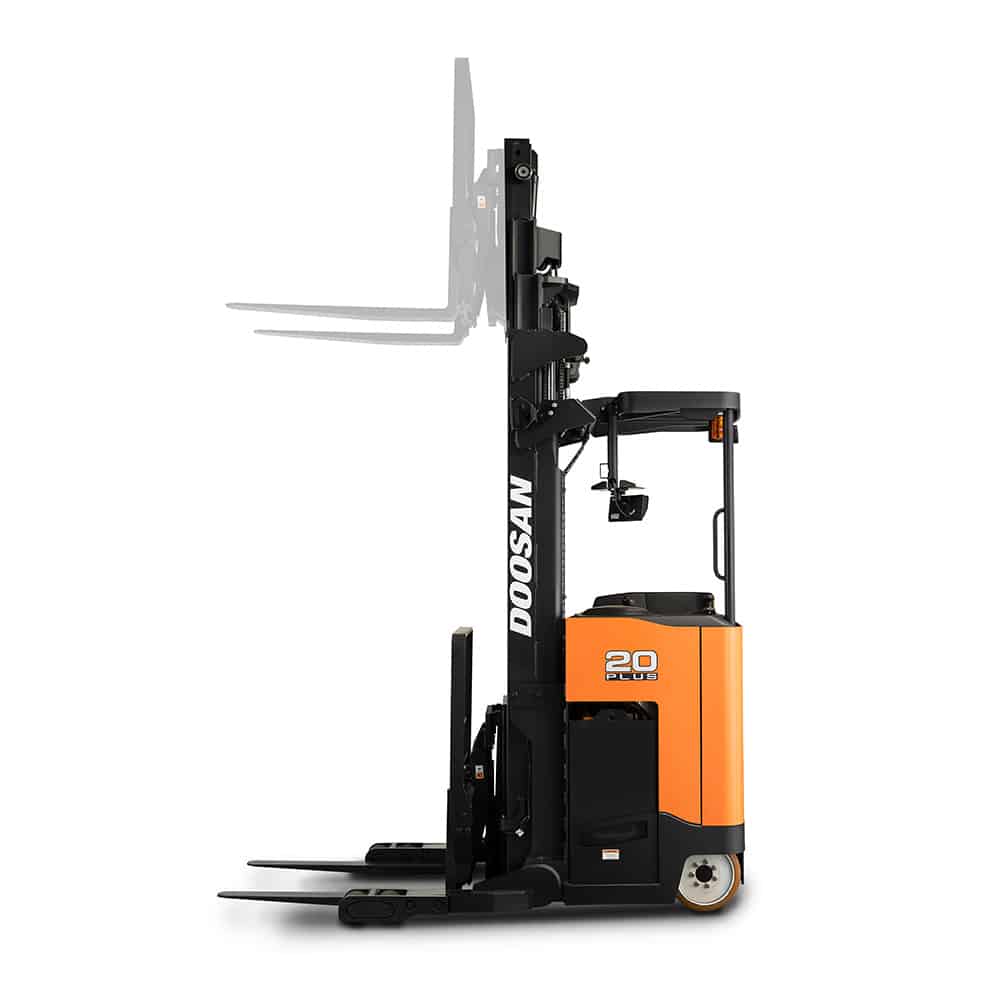

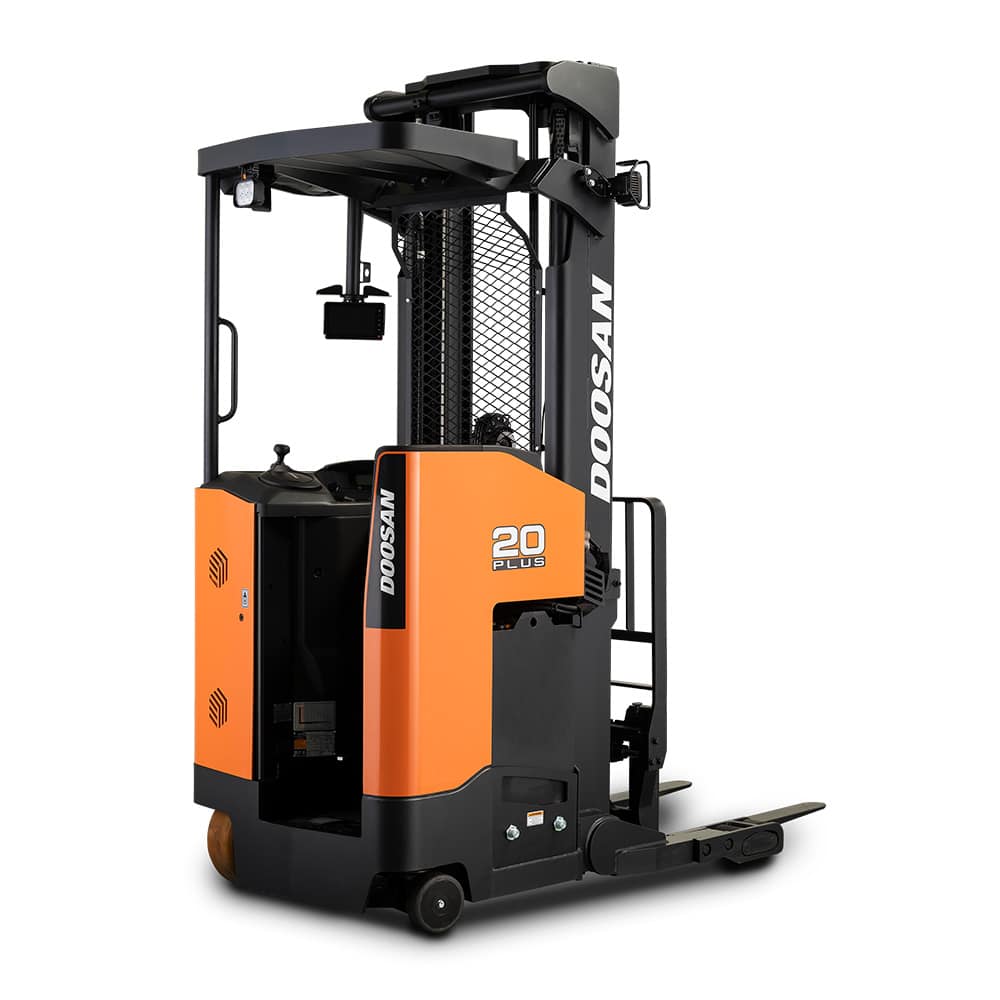

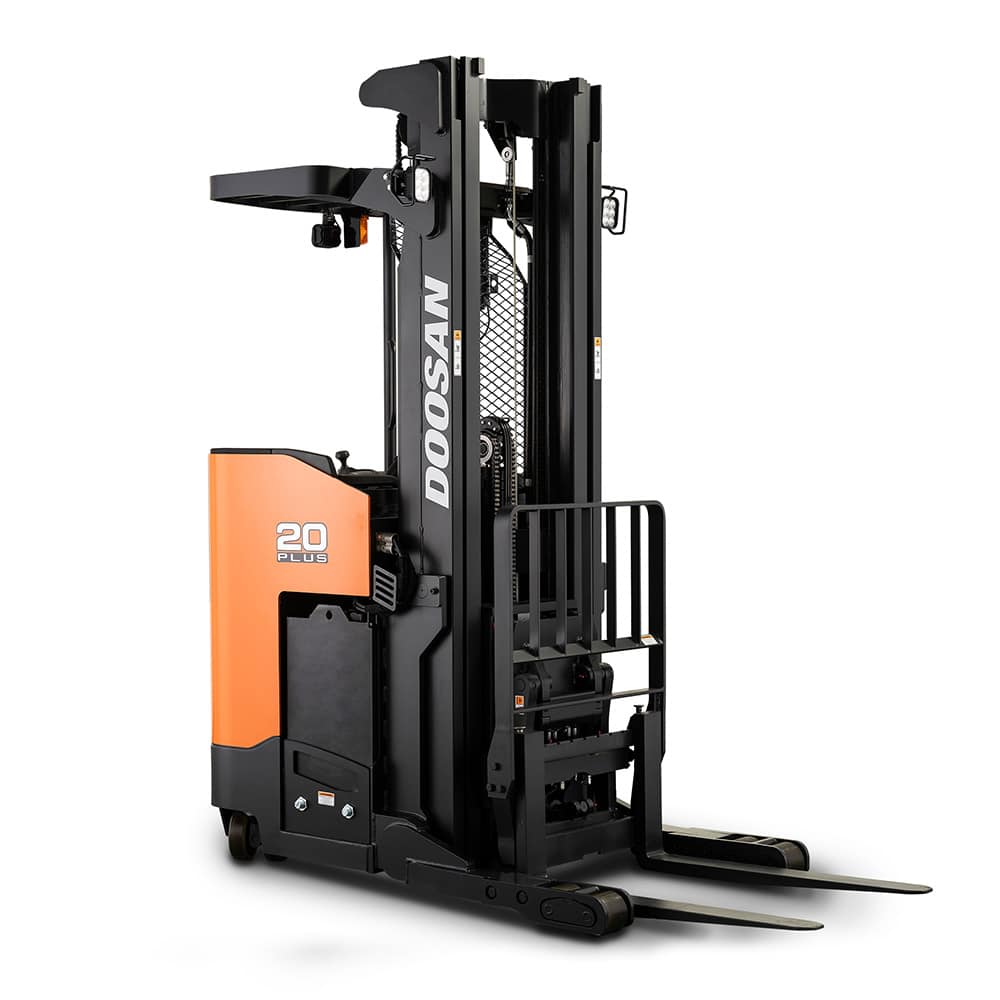

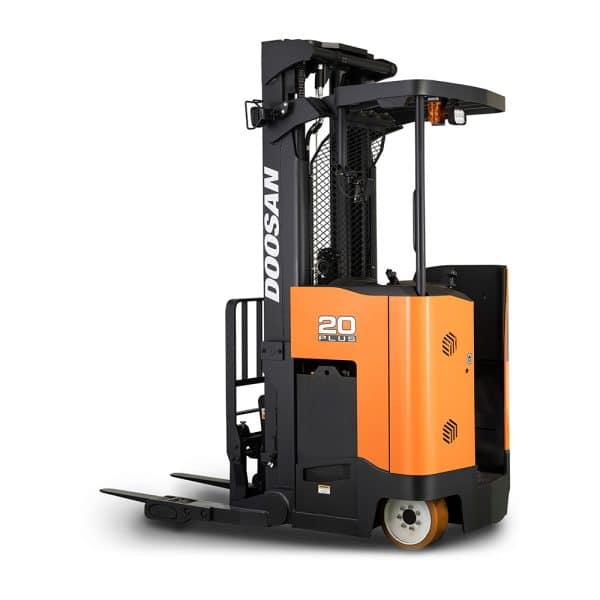

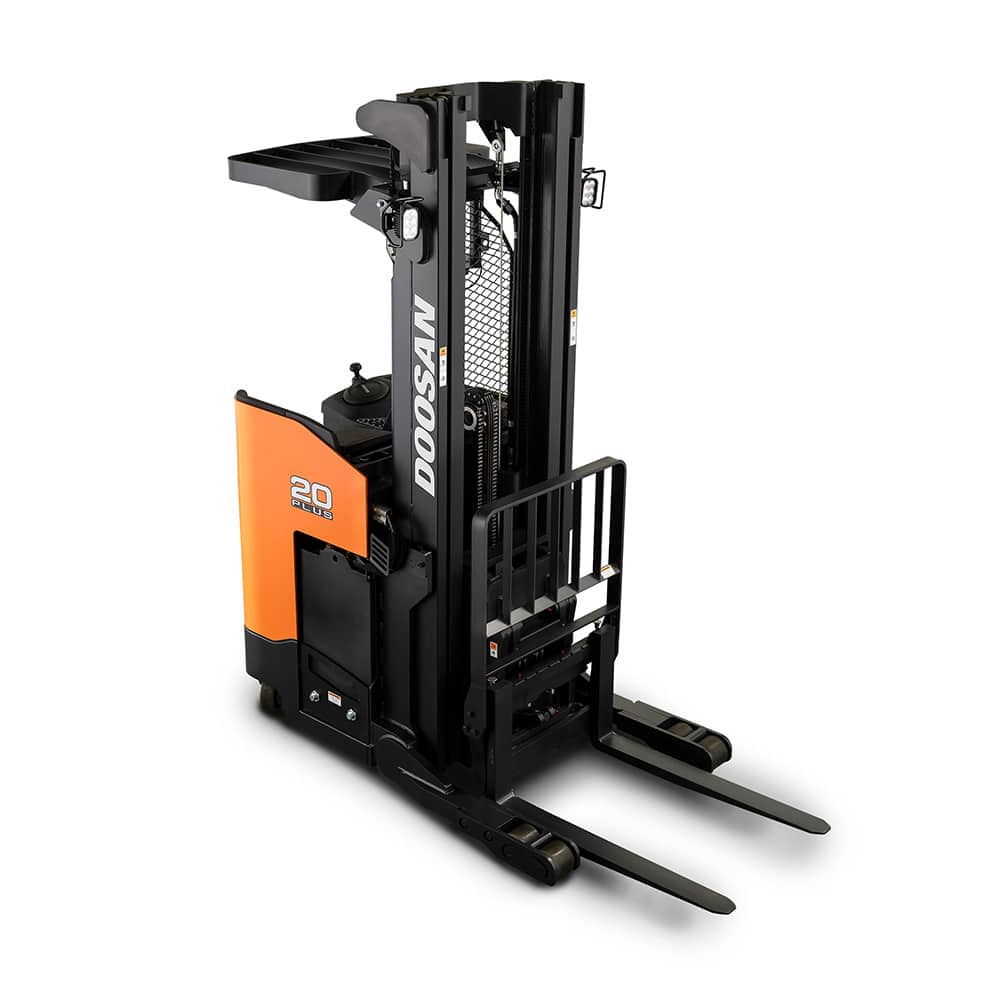

ELECTRIC POWERED PANTOGRAPH REACH FORKLIFTS


Model: BR18/20 SP-7
Fuel Type: Electric

Doosan reach forklifts are the ideal solution for narrowing your existing 12′ wide aisles to approximately 9′ and gaining additional pallet storage.  The design incorporates a blend of safety, productivity and long term durability features.

  • The side-stance orientation allows full visibility to the rear when traveling in reverse. The wide rear opening and the low step height make entering and exiting quick and effortless
  • GSS (Guardian Stability System):
    – Decreased travel speed (up to 50%) when the mast is raised above the primary stage
    – Alarm sounds when the mast is raised above the primary stage
    – Automatic turn deceleration provides an extra margin of safety by slowing travel while turning
    – Auto-tilt function for automatically takes carriage back to zero point for added safety
  • Operator Sensing System (OSS):
    – Continuously monitors systems to assure maximum safety
    – Mast Lowering Interlock – If the operator keys off, or gets off the seat, the hydraulic lift and tilt locking system will limit the motion of the truck
    – Hydraulic locks prevent hydraulic lift when lowering and tilting
  • Auto Centering Drive Tire:
    – At start up, the drive tire will automatically center in the forward direction to prevent accidental movement in the wrong direction and potential damage or injury
  • Doosan’s instinctive multi-function control handle is ergonomically positioned to provide easy access to all controls. The ability to operate multiple functions simultaneously increases Productivity
  • The Doosan manufactured mast and pantograph feature built-in hydraulic load cushioning to make load handling steady and safe
